Kishan Agro Industries, Manufacturer & Exporter of Hydraulic Concrete Mixer in India, Gujarat, Rajkot

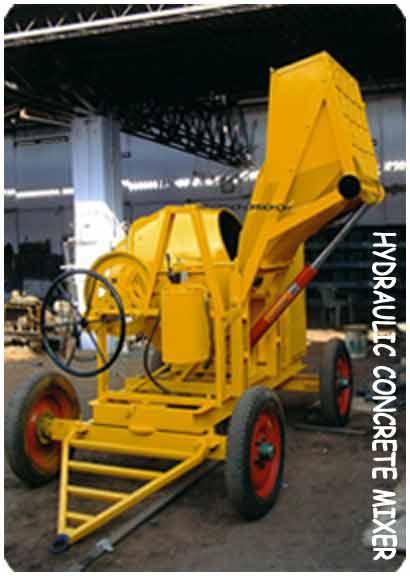

Hydraulic Concrete Mixer

Kishan Agro Industries is leading manufacturers & exporters of Concrete Mixer Machinery, Hydraulic Concrete Mixer Machine, Concrete Mixer with Hopper, Concrete Mixer without Hopper, Portable Concrete Mixer Machine, Mobile Concrete Mixer Machine, Automatic Concrete Mixer Machine, Cement Concrete Mixer Machine, Mini Concrete Mixer Machine.

Concrete Mixer is popularly known as one bag mixer because it consumes one bag of cement of 50 kg. per batch to make the concrete mix of 7 cu. ft. i.e. 0.2 cu. mt. One batch of 7 cu. ft. is prepared in 3 to 4 minutes. So about 20 batches per hour. So total output per hour is about 140 cu. ft. i.e. 4 cu. mt. of concrete mix approx.

Hydraulic Concrete Mixer Technical Specifications »

Batch Capacity 7/5 CFT

Chassis 2415 x 840 mm

Tyre Length 1730 mm

Tyre Size 500 x 19 mm

Engine 5/6 H.P.

Pump Capacity 28 Litre Per Minute

Jack Capacity 1.5 Tonnes

Oil Tank Capacity 20 Litres

Control Valve 4 DL 10 GS

Weight 1380 Kgs. (Approx.)

Concrete Mixer Machine Features »

Mixing Drum is of made of high grade Cast Iron with integrally cast bevel gear. Mild steel cone is bolted on the drum and entire mixing drum is swivelled into feeding, seperate big hand whell is provided for easy discharge.
Loader Bucket has liberal volumetric capacity to take sufficient concrete mix. It is fitted with a double hinged cradle giving a very steep discharge angle to the loader bucket. It is hoisted through hydraulic system and it automatically discharges the material into mixing drum. Hoisting and lowering of the loader bucket is controlled simultaneously.
5 H.P. to 6 H.P. Air Cooled Diesel Engine gives motive power to the concrete mixer. The engine is housed in to 10 G sheet metal cabin resting on the chassis.
Four Pneumatic Wheels & Axles provided under the chassis make the transportation of the entire concrete mixer machine very easy. It can be towed by draw bar fitted on the chassis by means of tractor or any other transportation vehicle. Two jacks are provided to lock the front axle while is in operation.
For ease of operation, all controls are grouped on one side of the machine.

Get a Hydraulic Concrete Mixer Price Quote »

If you seek a price estimate click here to inquire us about hydraulic concrete mixer.
